200 kg
1312 mm
Swivel 360°
2650 mm

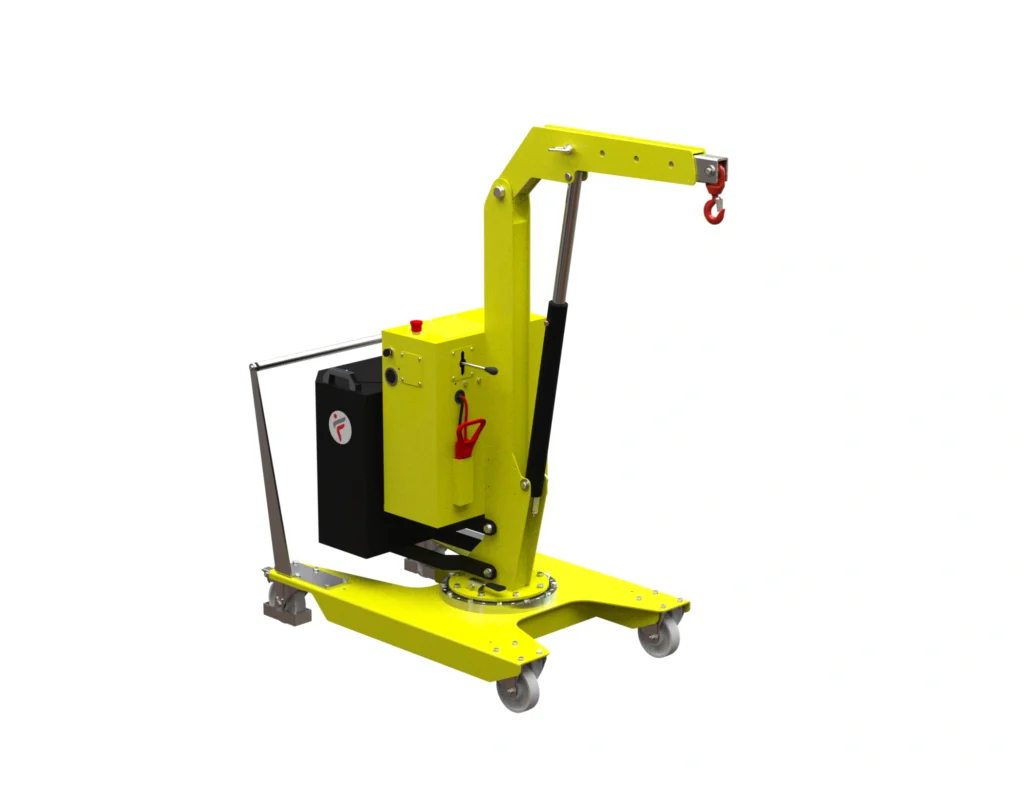

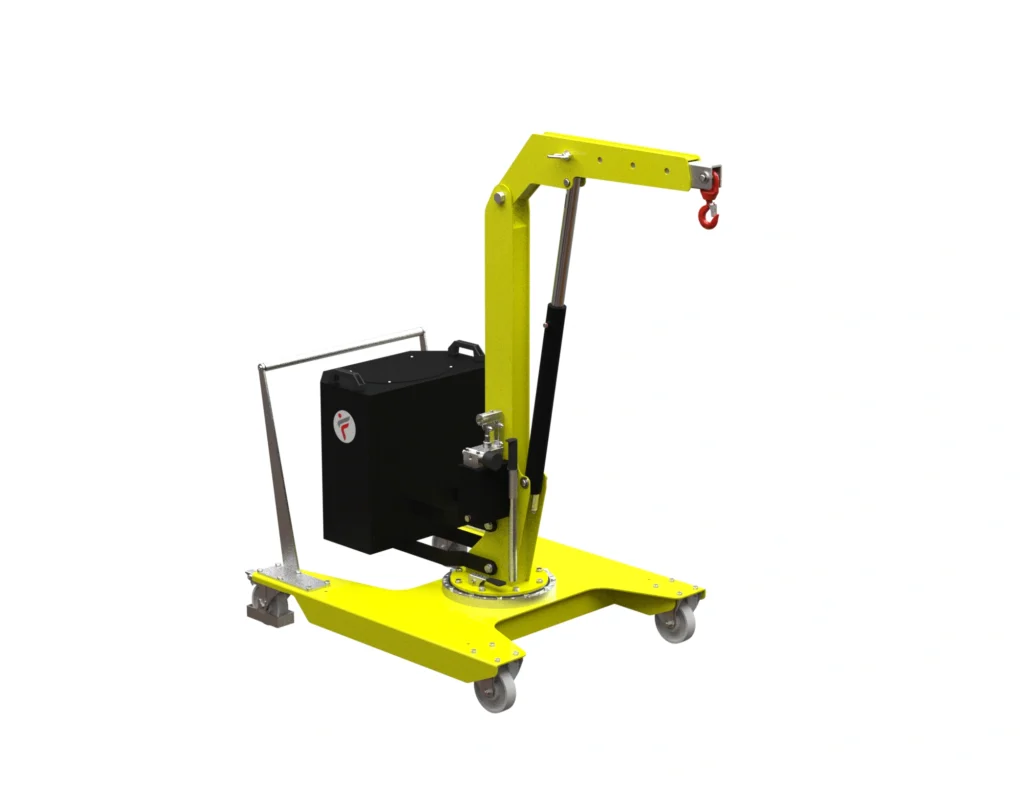

The 01B2SER_400 counterbalanced swivel crane has been designed to be easy to use and safe. The ballast with ergonomic handles and the bearing slewing ring ensure smooth and effortless rotation. The 200 kg load capacity and 360° rotation make it a versatile and reliable tool for a wide range of applications.
Thanks to the push-button radio control equipped with a potentiometer, the 01B2SER_400 mini crane offers millimetric precision in the lifting, lowering and extension movements of the boom.
The 01B2SER_400 mini crane is equipped with an electric extension with a stroke of 400 mm and, with the addition of a mechanical extension available as an optional, it can reach a maximum overhang of 1312 mm.
The crane is equipped with four nylon wheels: two pivoting, equipped with bumpers and parking brake, and two fixed mounted on ball bearings. This configuration ensures exceptional stability and precise maneuverability even under heavy load conditions. The frame, made of painted steel for greater resistance to corrosion, is equipped with specific supports for lifting with a forklift, making it easy to move the crane in any working environment.
The hydraulic system is equipped with a lock valve that prevents the load from falling in case of accidental breakage of the pipes and a rough valve that prevents overloading of the crane.
It represents the most cost-effective and flexible solution for lifting and transporting loads in several applications such as machining centers and machine tools, delivery to assembly lines, assembly operations, goods handling. Thanks to its compact dimensions this counterbalanced crane is easily maneuverable even at full load and can be moved effortlessly in confined spaces. All components are made in Italy to ensure the highest construction quality and the absence of defects.
External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.
Multifunction display showing charge level, battery voltage and operating hour meter.
Model 01B2SER_400 is the most popular model for awkward placements from the ground onto 3D machines, lathes, over perimeter protections, narrow openings, etc., and thanks to its 360° rotation, in all those applications where there is no space to move the load with a forklift or other large sizes lifting equipment.
Manual Push
2650
Swivel 360°
Electric with adjustable and proportional speed
200
780
1312
Electric with adjustable and proportional speed
Electric with adjustable and proportional speed
Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.
Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.
Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.
Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.
Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.
Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.
Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.
Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.
Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.
Unlike fixed cranes, mobile cranes can move to several plant areas. No licence required. Our cranes can get closer to the load even in presence of obstacles or perimeter protections. They can be equipped with several types of below the hook accessories.
The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines, etc.
Flexlifting cranes are designed to offer a great ease of access to those components that may need eventual inspection. Inspection tasks can be carried out assuring an ergonomic working position of the operator.
